RevX Ozone Water Filtration System

The RevX Ozone Water Filtration System is a high-flow water management solution designed and engineered specifically for cold plunges and ice baths. Powered by a commercial-grade water pump built for 24/7 continuous circulation, the system combines an Ambohr ozone generator with a 20-micron filter to deliver a crystal clear and clean cold plunge experience. The entire system arrives pre-assembled in a rugged steel cabinet with a built-in on/off valve, a true plug-and-play solution. Designed in California and manufactured in Asia.

Specifications

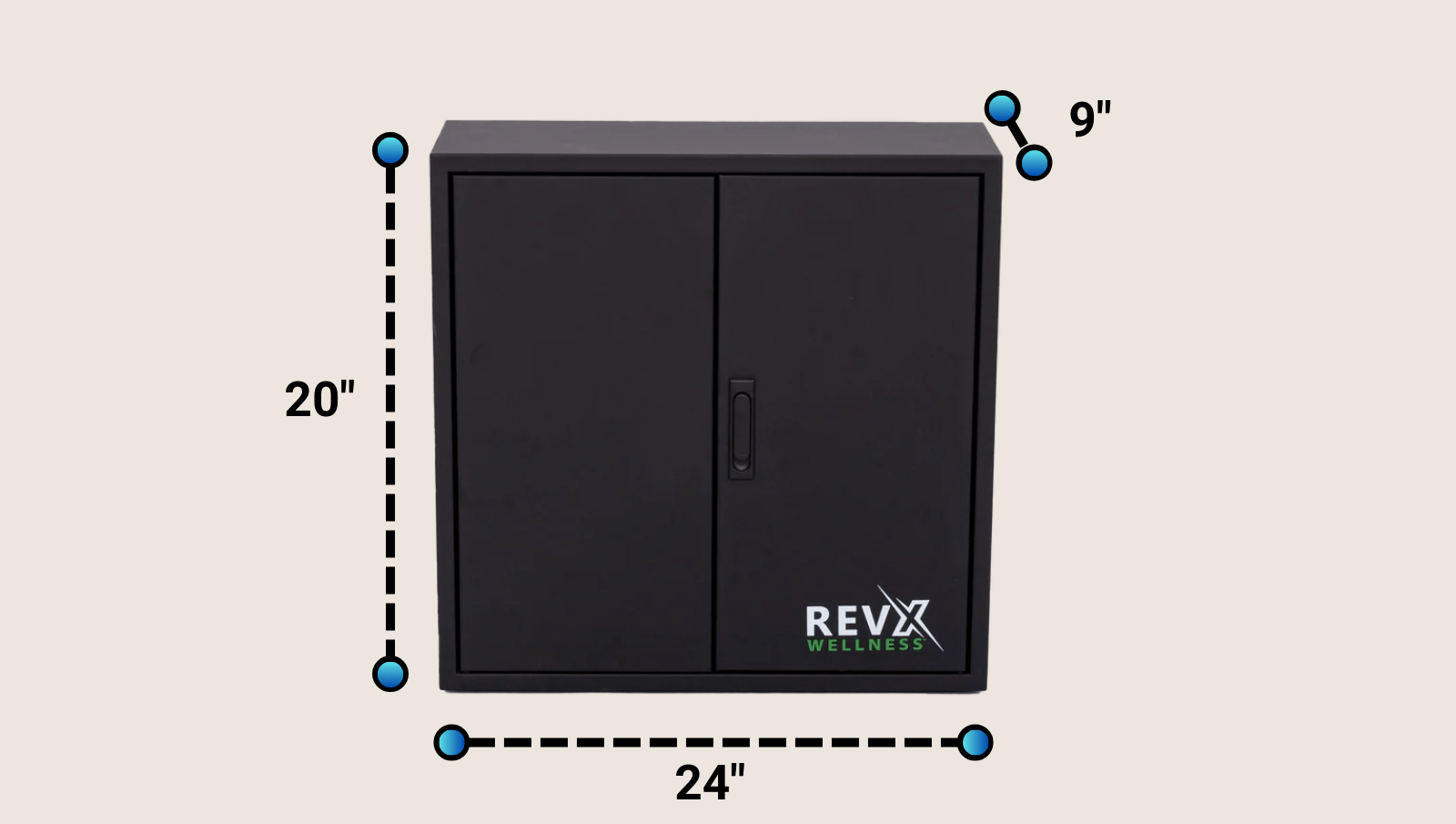

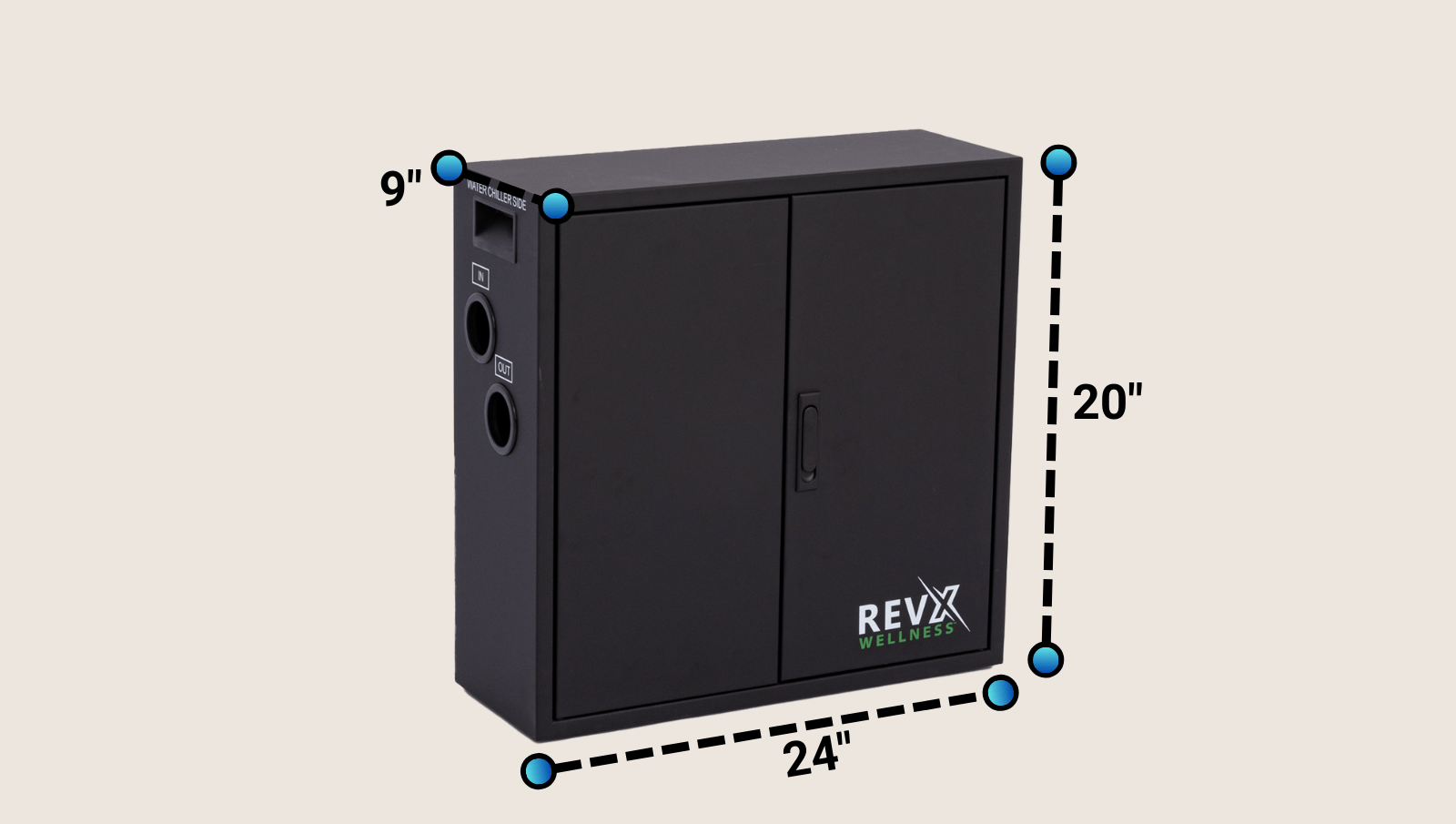

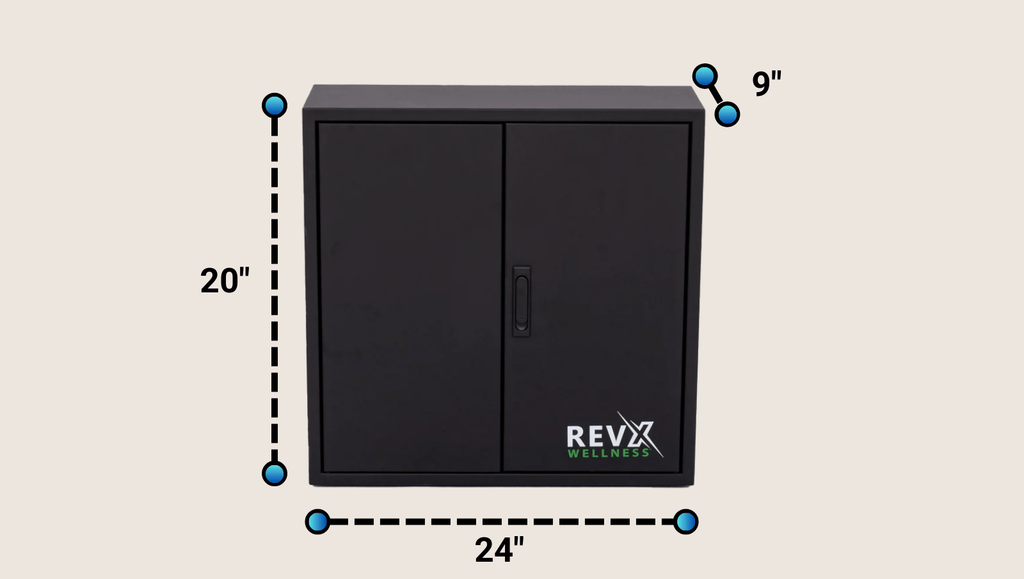

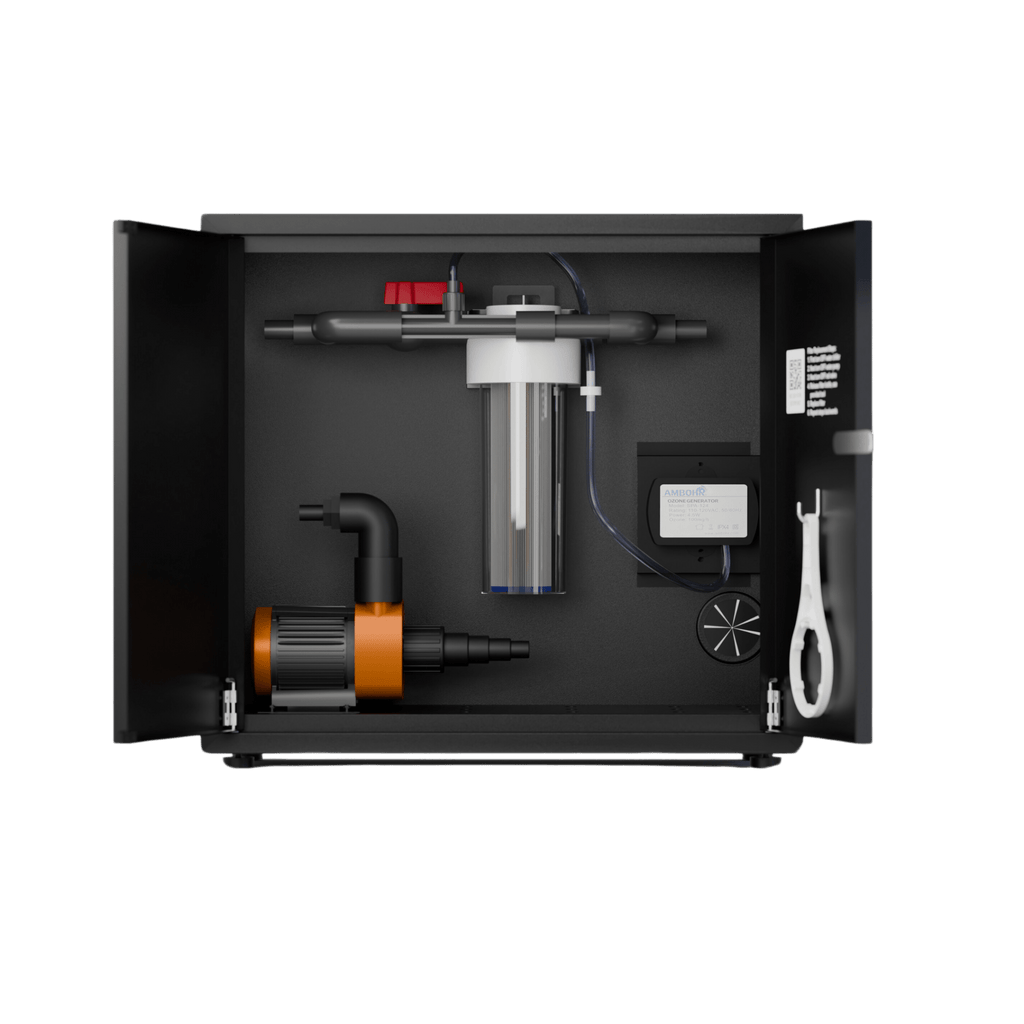

The RevX Ozone Water Filtration System is housed in a stylish all-steel cabinet with a black matte finish, built to be rigid and rugged for indoor and outdoor use. The system includes a powerful 1,700 GPH submersible/inline water pump (110V/60Hz) rated for continuous 24/7 operation. Water sanitation is handled by an Ambohr SPA-124 ozone generator with a venturi injector (110V/60Hz), which is recommended to run on a timer for 1 hour per 24-hour period. A clear water filter holder with a 20-micron filter cartridge provides easy filter changes. Plumbing is constructed from high-quality 3/4" PVC with easy slip-on barbed hose fitting adapters for both inlet and outlet connections. A built-in shut-off valve is included for convenient water flow control. The unit weighs 52 lbs and is rated for all-weather indoor and outdoor performance. It is backed by a one-year standard warranty.

Instructions

Connect the inlet and outlet barbed hose fitting adapters to your cold plunge plumbing. Plug in the water pump and ozone generator to standard 110V/60Hz outlets. Power on the water pump to begin continuous 24/7 circulation and filtration. Connect the ozone generator to a timer and set it to run for 1 hour per 24-hour period as recommended. Use the built-in shut-off valve to control water flow as needed. Replace the 20-micron filter cartridge regularly based on usage.  The clear filter holder makes it easy to monitor filter condition. Clean the exterior cabinet with a soft, damp cloth. The system is rated for all-weather indoor and outdoor use.

What’s in the Box

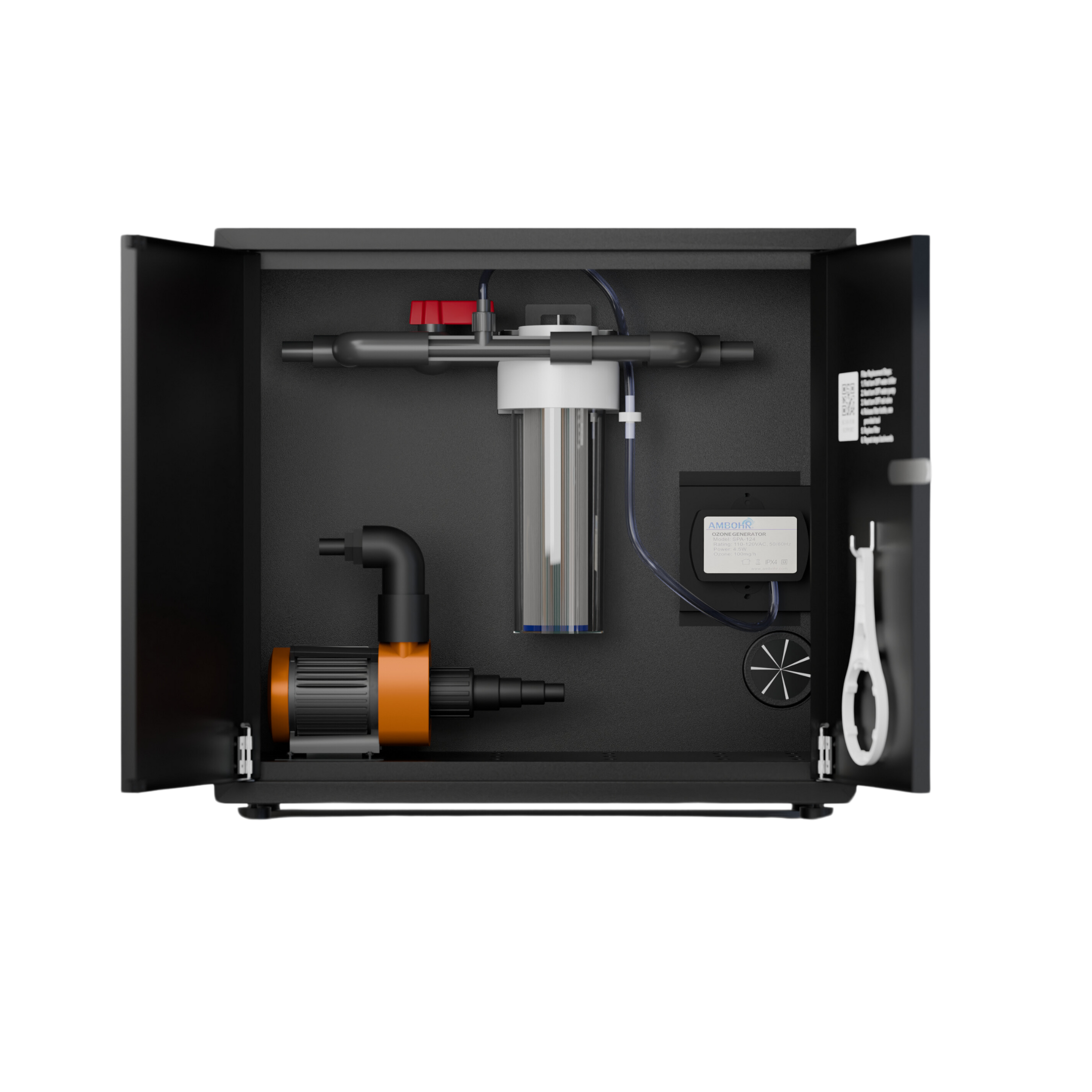

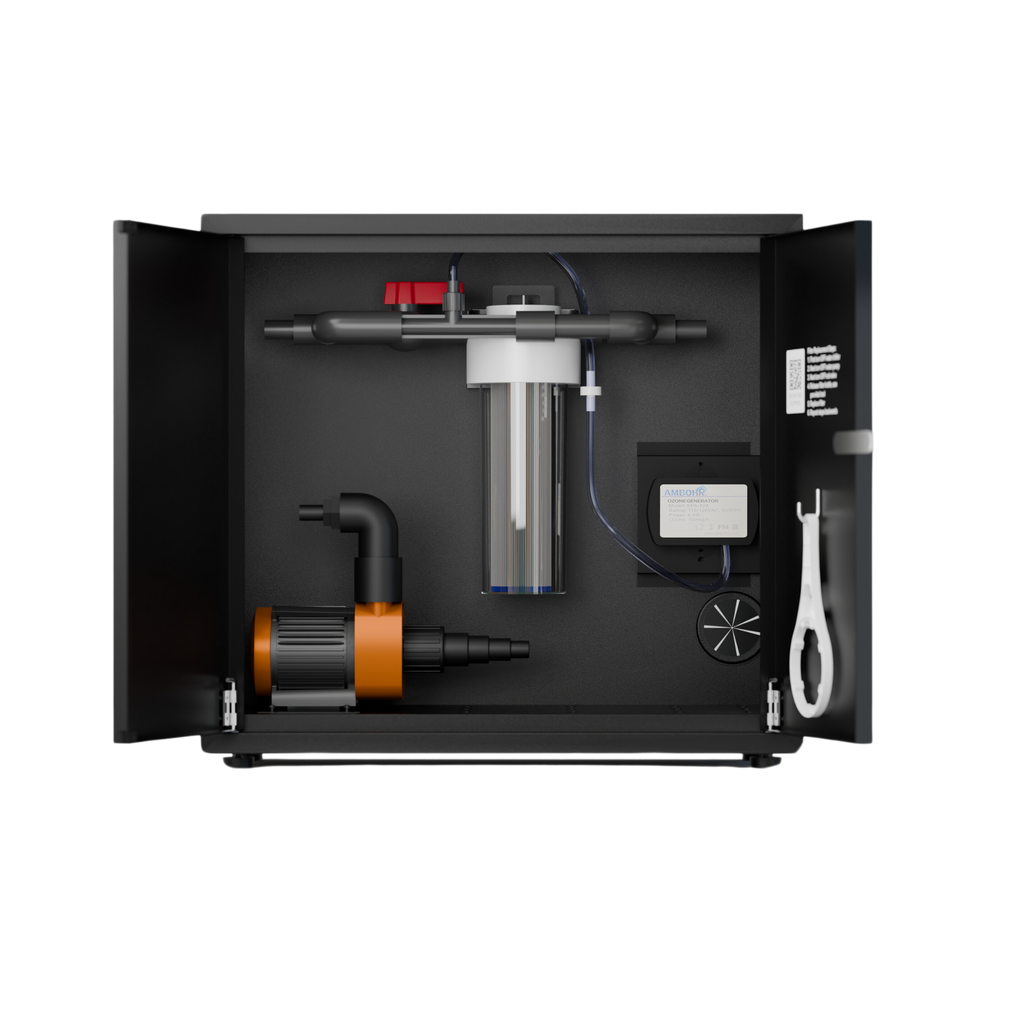

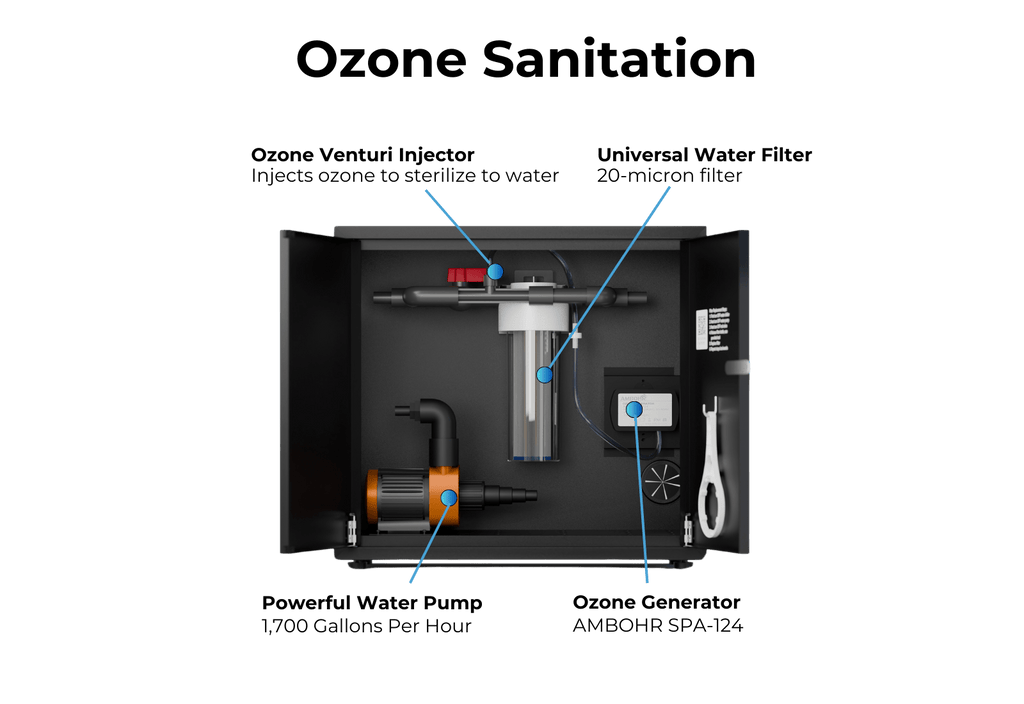

Your purchase includes the all-steel cabinet, an Ambohr SPA-124 ozone generator with venturi injector (110V/60Hz), a water pump (110V/60Hz), a clear water filter holder with filter, a shut-off valve, and all pre-assembled plumbing parts.

Manufacturer’s Warranty

The RevX Ozone Water Filtration System is backed by a one-year standard warranty.
